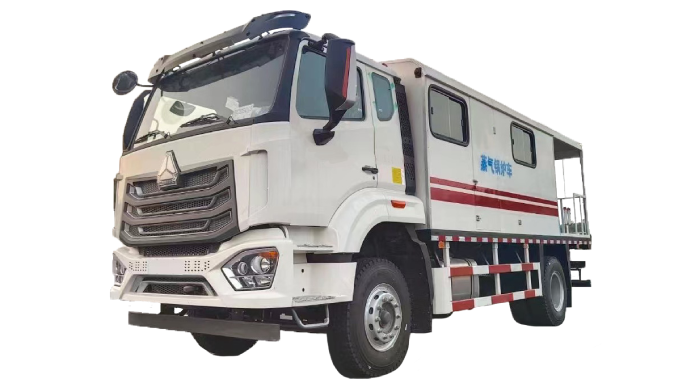

Oilfield boiler car

Short Description:

The oilfield boiler car is a highly efficient equipment that can effectively overcome the adverse effects of cold environments on oilfield production activities.
The equipment has various functions, can adapt to various working environments and complete different tasks such as wax removal, and provides functions such as high-pressure cleaning, heating well washing and steam wax removal. It can improve economic and social benefits by improving energy utilization and production efficiency, facilitating maintenance, and improving crude oil quality and output.

Send email to us

Product Detail

Product Tags

TECHNOLOGICAL INNOVATION

Boiler Assembly Equipment

1. Equipped with high-temperature steam booster
It solves the problem that when the existing oilfield boiler car is used for wax removal, the casing pressure is too high and the temperature cannot be transmitted to the deep wax deposition point, resulting in poor wax removal effect and affecting the oil well production capacity.
2.Optimize the imported shock-absorbing device of the plunger pump
When the rubber airbag leaks or lacks air, the corrosion-resistant elastic protective cover rubs against the inner wall of the sealed shell and makes a sound, reminding the on-duty personnel to inflate and check the cause of the leak, protecting the rubber airbag, extending its service life, and reducing safety hazards.

Integrated Control System Assembly
3. Equipped with oilfield vehicle control system assembly
The oilfield vehicle control system is equipped with a four-way imaging system, a driving recorder equipped with satellite positioning, an intelligent anti-collision system and a speed limit setting, which can alarm and warn of collision when the driving path deviates during the operation of oilfield equipment, ensuring the accuracy and safety of equipment operation.
4. Equipped with intelligent control system for boiler cars
Equipped with steam boost control system for oilfield boiler cars and pressure relief valve induction control system for oilfield boiler cars, it improves work efficiency while ensuring the safety of operators.

TECHNICAL PARAMETERS

Environmental information disclosure	WP8.350E61
Wheelbase	4200mm,4500mm,4800mm,5150mm,3950mm,5300mm,4990mm
Gross weight	12500 Kg
Curb weight	12305 Kg
Engine model	YCK05240-60、WP4.5NS6B220、MCS04200-68
Dimensions	7900mm×2550mm×3500mm
