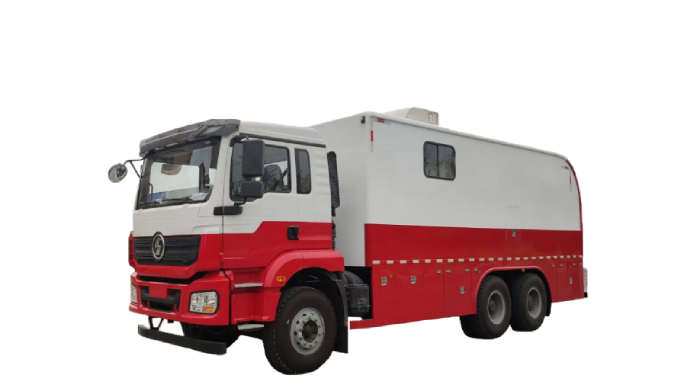

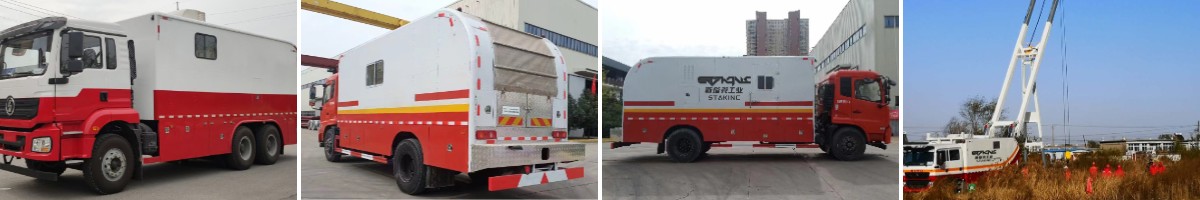

Oilfield Logging Vehicle

Short Description:

Oilfield logging vehicle is one of the essential and important tools in oil exploration and development.
Oilfield logging vehicles use the electrochemical, conductive, acoustic, and radioactive geophysical properties of rock formations to measure geophysical parameters. The measured data is transmitted to the ground through cables and drilling fluids. After processing and interpretation, the oil and gas layers are evaluated, providing extremely important information for oil exploration and development.

Send email to us

Product Detail

Product Tags

TECHNOLOGICAL INNOVATION

Logging Assembly Equipment

1. Assemble vision-based oil pipe defect detection equipment
With the help of advanced vision technology and image processing algorithms, rapid and accurate detection of oil pipe surface defects is achieved, improving work efficiency.
2. Optimize winch automation device
Set up a top line and drive translation module above the reel to solve the problem of rope winding at the center of the reel, thereby achieving speed increase and improving practicality;
Adjust cable distribution to prevent cable winding and crossing during use, thereby evenly dispersing cable tension, reducing wear and improving cable car work efficiency.

Integrated Control System Assembly
3. Equipped with oilfield vehicle control system assembly
The oilfield vehicle control system is equipped with a four-way imaging system, a driving recorder equipped with satellite positioning, an intelligent anti-collision system and a speed limit setting, which can alarm and warn of collision when the driving path deviates during the operation of oilfield equipment, ensuring the accuracy and safety of equipment operation.
4. Equipped with intelligent control system of logging vehicle
Equipped with visual perception based oil pipe defect detection system and Stark oil pipe visualization online monitoring platform, real-time detection data.

TECHNICAL PARAMETERS

Environmental information disclosure	WP8.350E61
Wheelbase	5100mm
Gross weight	17200 Kg
Curb weight	17005 Kg
Engine model	WP6H245E61、YCS06245-60、WP4.6NQ220E61
Dimensions	8790mm×2550mm×3600mm
